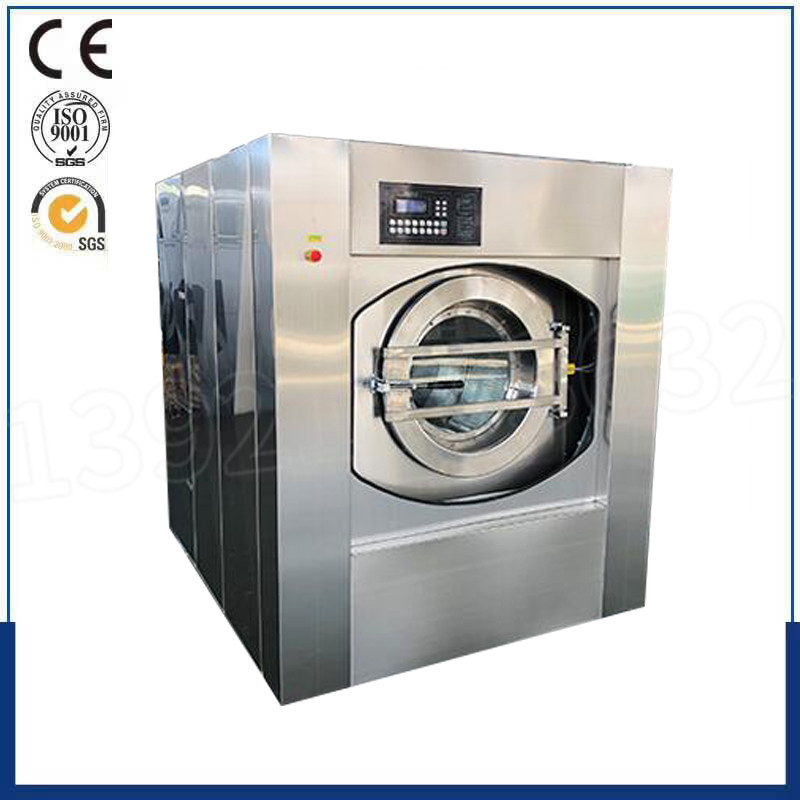

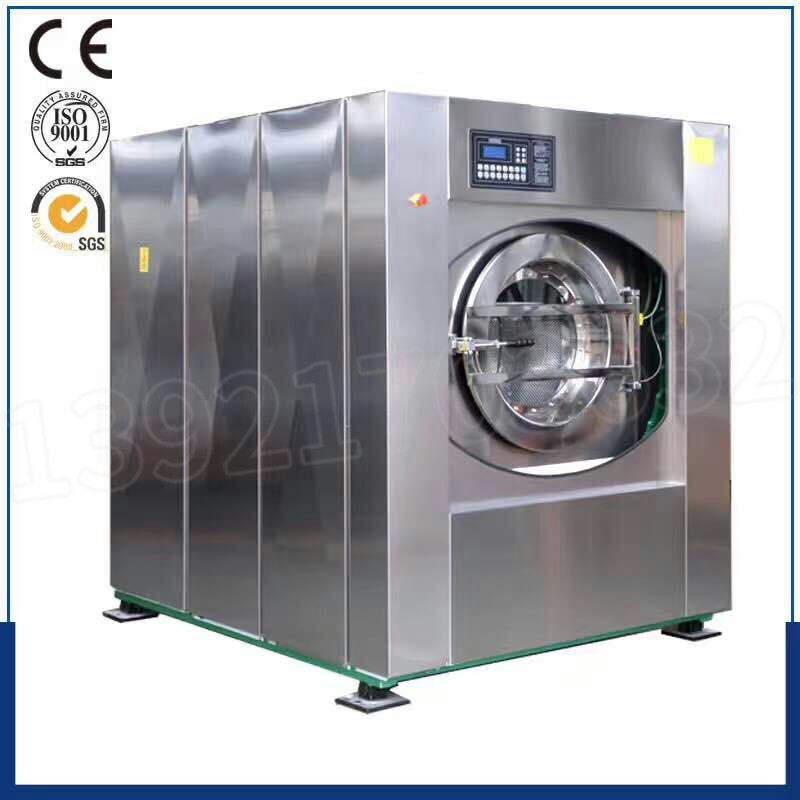

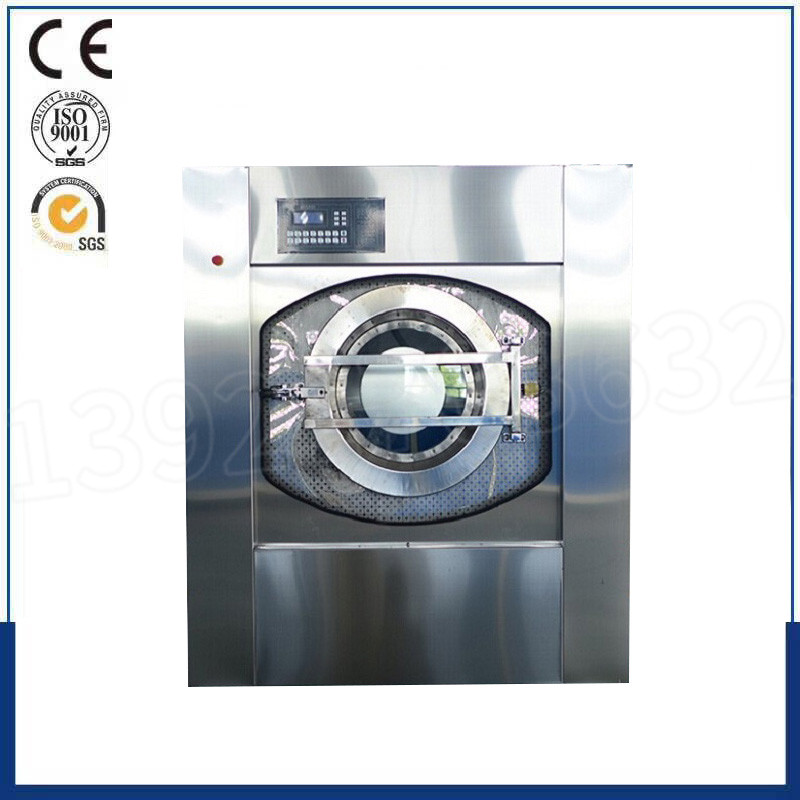

15kg-30kg fully automatic washing machine
-
15kg-30kg fully automatic washing machine
-
50kg-70kg fully automatic washing machine -
100kg fully automatic washing machine -
120kg fully automatic washing machine
一、(Main Technical specifications)
| XTQ-15 | XTQ-20 | XTQ-30 | XTQ-50 | XTQ-70 | XTQ-100 | XTQ-120 | |
rated capacity | ||||||||
Min | kg | 10 | 15 | 20 | 35 | 50 | 70 | 90 |
Max | kg | 15 | 20 | 30 | 50 | 70 | 100 | 120 |
Drum | ||||||||
Diameter | mm | 636 | 700 | 900 | 1080 | 1080 | 1200 | 1300 |
Diameter deepness | mm | 470 | 500 | 500 | 575 | 730 | 856 | 900 |
Overall Dimension | ||||||||
Hight | mm | 1300 | 1400 | 1635 | 1800 | 1800 | 2030 | 2100 |
Length | mm | 1240 | 1260 | 1460 | 1610 | 1760 | 1990 | 2195 |
Width | mm | 1000 | 1050 | 1400 | 1650 | 1550 | 1690 | 1790 |
Drum speed | ||||||||
Washing rotate speed | r/min | 45 | 45 | 36 | 35 | 33 | 31 | 30 |
Uniformity speed | r/min | 90 | 85 | 80 | 75 | 70 | 65 | 60 |
Mid speed | r/min | 450 | 450 | 420 | 380 | 350 | 310 | 310 |
High speed | r/min | 890 | 890 | 780 | 760 | 680 | 680 | 650 |
Motor | kw | 2.2 | 2.2 | 4 | 5.5 | 7.5 | 7.5 | 11 |
Draining valve | mm | φ70 | φ70 | φ100 | φ100 | φ100 | φ140 | φ100-2 |
Filling with water | ||||||||
Hot water pipe | 3/4" | 3/4" | 3/2" | 3/2" | 3/2" | 3/2" | 2" | |
Cold water pipe | 3/4" | 3/4" | 3/2" | 3/2" | 3/2" | 3/2" | 2" | |
Steam pipe | 3/4" | 3/4" | 1" | 1" | 1" | 1" | 1" | |
Power supply | Standard:380+N-3PH-50HZ | |||||||
2、 Product Introduction
The fully automatic washing machine has a full computer LCD human-machine dialogue operation interface, with a large Chinese display screen. There are 30 different washing programs to choose from, which can meet any washing requirements and fully realize the automation of washing, bleaching, jigging and other processes. This fully automatic washing machine adopts a suspended vibration avoidance structure, equipped with a spring damping system, which is ultra-low in vibration and can be safely placed on any floor without the need for foundation. The fully automatic washing machine adopts an imported frequency conversion system, which is convenient for speed regulation, stable for starting, low in noise, and has obvious energy-saving effects. The transmission structure is simple and reliable. The fully automatic washing machine is designed with a fully enclosed drainage frame structure to reduce pollution and maintain a dry and clean workplace. Both the inner and outer cylinders are made of stainless steel. Improved service life. The stainless steel refined door and pneumatic safety device greatly improve safety during use. The rear concentrated oil lubrication pump design achieves automatic lubrication of the transmission system lubricant, with advanced and humanized care.
